Tabletop LCD Rapid Autoclave Machine from China manufacturer

Payment Terms:	T/T,WU,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CLASS B-YF-23L

Production Capacity: 500 UNITS/MONTH

Delivery Date: ABOUT 20 DAYS

Function: Medical Devices Sterilizati...

Capacity: 23L

Automatic door-lock system: Yes

Double tanks: The clean and the dirty are...

Three-phase pulse vacuum: Yes

Means of Transport: Ocean,Air,

Packing: CASE

Brand Name: YONGFENG

Grade: Class B

Display: Wide LCD display, touch but...

Sterilizing chamber: Rectangular sterilizing cha...

Testing programs of Helix, B-D and vacuum-lock system: Yes

With micro-printer: Yes

Micro-computer control,wide LCD, High-speed, powerful intellective pulse vacuum drying function,many testing programs, Rectangular sterilizing chamber

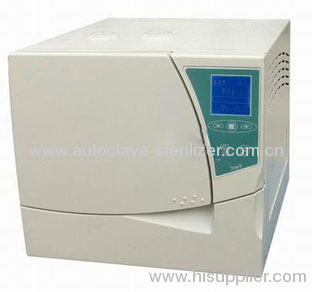

CLASS B-YF-23L Rapid Steam Sterilizer

Details:

The Rapid Steam Sterilizer conforms to EN13060 standard and YY0646-2008 degree B standard. It is used for the sterilization and drying of packed or unpacked solid appliances, class A hollow appliances (such as dental hand-piece and endoscope), and rubber.

Features:

●Micro-computer control, wide LCD, touch buttons;

●High-speed: only 12 to 15 minutes' time spending for the whole process, including pulse vacuum heating-up sterilizing and vacuum drying;

●Rectangular sterilizing chamber, utilized space being 25% more than that of circular shape;

●With the patent techniques of frequency conversion temperature-control, the sterilizer heats up quickly and controls the temperature accurately meanwhile saving energy efficiently;

●The operation is safe, simple and reliable with the automatic door-lock system which makes the safety both mechanically and electronically insured;

●Three-phase pulse vacuum makes the vacuum purity up to -90Ka,ensuring the residual air in the seam of class A hollow appliances (such as dental handpiece and endoscope) be removed efficiently and the high-temperature steam penetrates and reaches to every part;

●Powerful intellective pulse vacuum drying function ensures the residual humidity of dried appliances be no more than 0.2%, and that of dressing 1%;

●Besides sterilizing, it has the function of making medical cotton;

●It has the testing programs of Helix, B-D and vacuum, and the vacuum leakage rate is less than 0.13Kpa/min (it receives the tests via PCD progress of the lumen) ;

●With the rapid steam generator and the steam-water separator built in, the quality of the steam can be guaranteed, and therefore no external steam source is needed;

●The well-performed 0.22μm air disinfector and filter makes the air that destroys the vacuum state sterile, avoiding re-contamination;

●With double tanks installed, the clean and the dirty are separated, contamination caused by inner toxin thus being avoided;

●With the micro-printer and a can-be-matched USB interface, the sterilizing process can be recorded.

Main imported components:

● Korea G & M vacuum pump

● Japan SMC solenoid valve

● Switzerland HUBA pressure sensor

Safety devices:

● Automatic over-temperature protection device

● Excess-pressure protection device

● Door safety interlock device

● Short-circuit protection device
